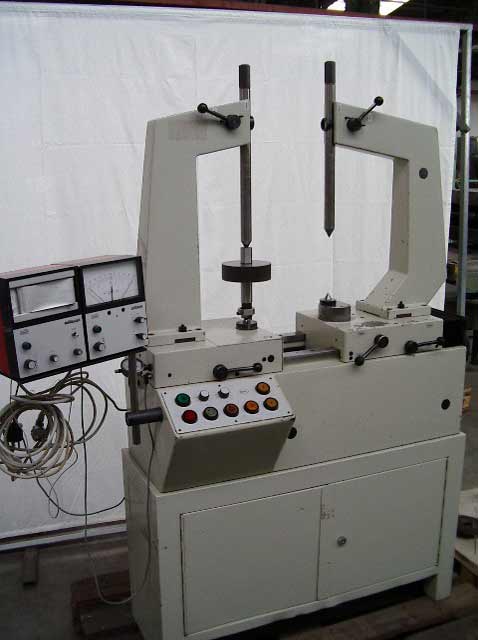

Tooth flank testing machine MAHR 898 B 898 B
Product Details
Warehouse Number : | 200656 |
Type : | 898 B |
Year of manufacturing : | 1975 |
Make : | MAHR |
Country of origin : | Germany |
type of control : | Conventional |
Technical Details
Total power requirement: : | 0.1 kW |
Dimensions (L x W x H): : | 1,300 x 500 x 1,500 mm |
: | |
Wheel diameter - max .: : | 800 mm |
width: : | 100 mm |
Module - max .: : | 10 |
Module - min .: : | 1 |
Center distance between peaks: : | 25..600 mm |
permissible wheel weight adjustment slide: : | 250 kg |
repeatability: : | 0.5 mm |
Measuring force: : | 5.50 N |
permissible wheel weight measuring carriages: : | 100 kg |
Module - min .: : | 1 |
