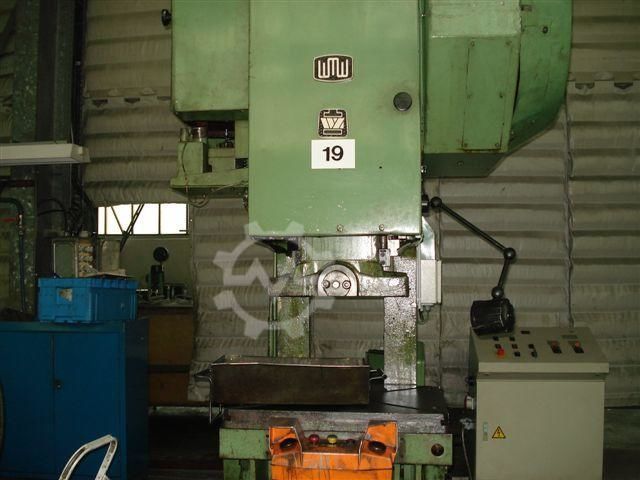

Single Eccentric Press Wema Zeulenroda PEDN 63/3 PEDN 63/3
Product Details
| Warehouse number : | A1746579 |
| Type : | PEDN 63/3 |
| Year of manufacturing : | 1980 |
| Make : | Wema Zeulenroda |
| Storage location : | D - Thuringia |
Technical Details
| Weight / weight of machine: : | 8,0 t |
| Connected load : : | 6,0 kW |
| Pressing force / rated pressure: : | 63 t |
| Number of strokes: : | 90 min-1 |
| stroke adjustable / adjustment of stroke: : | 8-120 mm |
| maximum distance between table and broom / max.distance bed to slide: : | 560 mm |
| Adjustment of the slide / adjustment of slide: : | 70 mm |
| table surface / surface of bed: : | 800 x 630 mm |
| surface of slide: : | 500 x 400 mm |
| diameter of hole in slide: : | 40 mm |
| Machine dimensions L / W / H : : | 2,045 / 1,500 / 2,650 mm |
| surface of slide: : | 500 x 400 mm |
