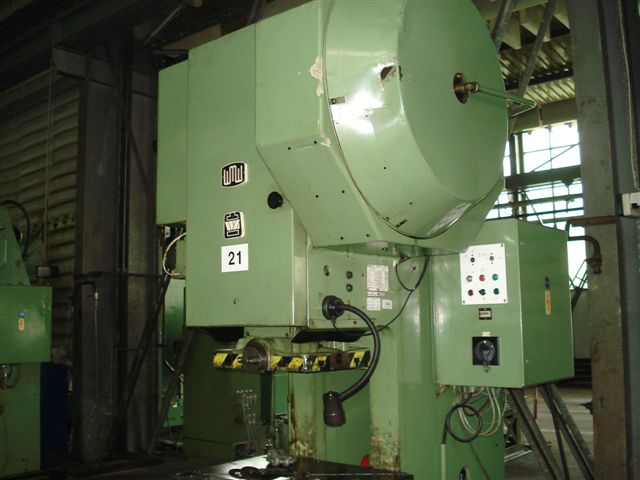

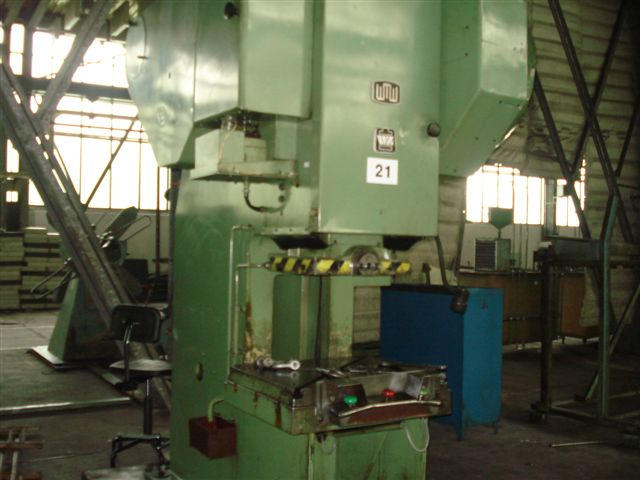

Single-column eccentric press Wema Zeulenroda PED 63/3 PED 63/3
Product Details
| warehouse number : | 200807 |
| Type : | PED 63/3 |
| Year of manufacturing : | 1981 |
| storage location : | Erfurt |
| Country of origin : | Germany |
| Make : | Wema Zeulenroda |
| Type of control : | Conventional |
Technical Details
| Machine weight: : | 5.5 tons |
| Total power requirement: : | 6 kW |
| Pressing power: : | 63 t |
| Ram stroke: : | 120 mm |
| Ram adjustment: : | 70 mm |
| Stroke: : | 56..90 / min |
| Table area: : | 800 x 530 mm |
| Distance between table and pestle: : | 580 mm |
| Sheet thickness: : | 3.2 mm |
| Stroke: : | 56..90 / min |
